Photos are non-contractual - they may differ from the actual product in details and contents.

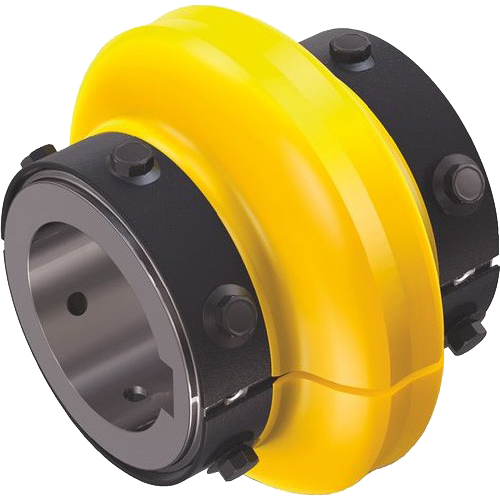

Tyre coupling VIVA

Tyre coupling VIVA TYRE COUPLING VIVA V 290 TL (3020)
Rated torque = 1271 Nm
Max. speed = 3900 rpm
Bore D1 min. = 35 mm
Bore D1 max. = 75 mm
Bore D2 min. = 35 mm
Bore D2 max. = 75 mm
Outside diameter = 290 mm
Total length min. = 153 mm
Total length max. = 188 mm
The here above data are only for information. Please consult the catalog for detailed informations.

Reference : 306AVV290TL
Brand : REXNORD
Weight : /

Price : on request

in stock
or

Technical information

Category : Tyre coupling VIVA
Brand : REXNORD
Type : VIVA V HTL
Norm : 290
Cnom : 1412 Nm
Nmax : 3900 tr/min
Bush : 3020
Bore1 : 75 mm
Bore2 : 75 mm
Material / hub : Cast iron
Material / element : PU
Shore : /
Max Temp. : +93°C °C
Backlashfree : /
Atex : Option
Treatment : /
