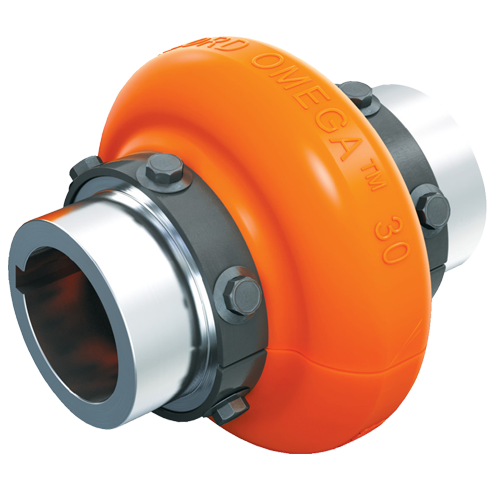

Tyre coupling OMEGA

Tyre coupling OMEGA "TYRE COUPLING OMEGA E 60 TL (3020)
Rated torque = 1412 Nm
Max. speed = 3800 rpm
Bore D1 min. = 24 mm
Bore D1 max. = 75 mm
Bore D2 min. = 24 mm
Bore D2 max. = 75 mm
Outside diameter = 318 mm
Total length = 186 mm
The here above data are only for information. Please consult the catalog for detailed informations."

Reference : 306AOE060TL
Brand : REXNORD
Weight : /

Price : on request

out of stock
or

Technical information

Category : Tyre coupling OMEGA
Brand : REXNORD
Type : OMEGA E HTL
Norm : 60
Cnom : 1412 Nm
Nmax : 3800 tr/min
Bush : 3020
Bore1 : 75 mm
Bore2 : 75 mm
Material / hub : Cast iron
Material / element : PU
Shore : /
Max Temp. : +93°C °C
Backlashfree : /
Atex : Option
Treatment : /
