Photos are non-contractual - they may differ from the actual product in details and contents.

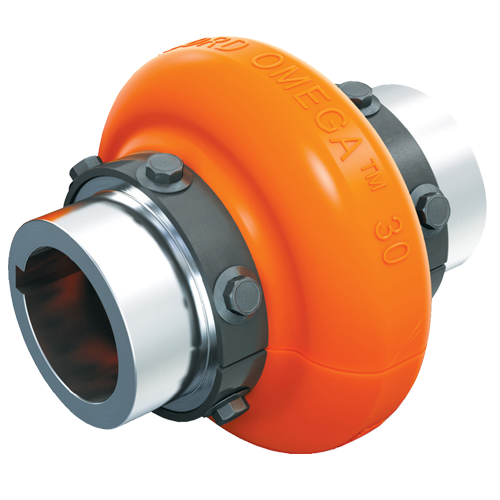

Tyre coupling OMEGA

Tyre coupling OMEGA "TYRE COUPLING OMEGA E 50 TL (2517)
Rated torque = 864 Nm
Max. speed = 4200 rpm
Bore D1 min. = 13 mm
Bore D1 max. = 63 mm
Bore D2 min. = 13 mm
Bore D2 max. = 63 mm
Outside diameter = 279 mm
Total length = 166 mm
The here above data are only for information. Please consult the catalog for detailed informations."

Reference : 306AOE050TL
Brand : REXNORD
Weight : /

Price : on request

out of stock
or

Technical information

Category : Tyre coupling OMEGA
Brand : REXNORD
Type : OMEGA E HTL
Norm : 50
Cnom : 864 Nm
Nmax : 4200 tr/min
Bush : 2517
Bore1 : 65* mm
Bore2 : 65* mm
Material / hub : Cast iron
Material / element : PU
Shore : /
Max Temp. : +93°C °C
Backlashfree : /
Atex : Option
Treatment : /

Related products

Code Description Brand Price Quantity Availability
0192517018 MECALINE Taperbush 2517 - Ø 18 TAPERBUSH on request
0192517019 MECALINE Taperbush 2517 - Ø 19 TAPERBUSH on request
0192517019,05 MECALINE Taperbush 2517 - Ø 19,05 (3/4") Brit. Std TAPERBUSH on request
0192517020 MECALINE Taperbush 2517 - Ø 20 TAPERBUSH on request
0192517022 MECALINE Taperbush 2517 - Ø 22 TAPERBUSH on request
0192517024 MECALINE Taperbush 2517 - Ø 24 TAPERBUSH on request
0192517025 MECALINE Taperbush 2517 - Ø 25 TAPERBUSH on request
0192517025,40 MECALINE Taperbush 2517 - Ø 25,40 (1") Brit. Std TAPERBUSH on request
0192517028 MECALINE Taperbush 2517 - Ø 28 TAPERBUSH on request
0192517028,57 MECALINE Taperbush 2517 - Ø 28,57 (1 1/8") Brit. Std TAPERBUSH on request
0192517030 MECALINE Taperbush 2517 - Ø 30 TAPERBUSH on request
0192517031,75 MECALINE Taperbush 2517 - Ø 31,75 (1"1/4) Brit. Std TAPERBUSH on request
0192517031,75AS MECALINE Taperbush 2517 - Ø 31,75 (1"1/4) Keyway 1/4"x1/8" Am.Std TAPERBUSH on request
0192517032 MECALINE Taperbush 2517 - Ø 32 TAPERBUSH on request
0192517034,93 MECALINE Taperbush 2517 - Ø 34,93 (1"3/8) Brit. Std TAPERBUSH on request
0192517035 MECALINE Taperbush 2517 - Ø 35 TAPERBUSH on request
0192517038 MECALINE Taperbush 2517 - Ø 38 TAPERBUSH on request
0192517038,10AS MECALINE Taperbush 2517 - Ø 38,10 (1"1/2) Keyway 3/8x3/16 Am. Std. TAPERBUSH on request
0192517040 MECALINE Taperbush 2517 - Ø 40 TAPERBUSH on request
0192517041,28 MECALINE Taperbush 2517 - Ø 41,28 (1"5/8) Brit. Std TAPERBUSH on request
0192517042 MECALINE Taperbush 2517 - Ø 42 TAPERBUSH on request
0192517043 MECALINE Taperbush 2517 - Ø 43 TAPERBUSH on request
0192517044,45AS MECALINE Taperbush 2517 - Ø 44,45 (1"3/4) Keyway 3/8x3/16 Am. Std. TAPERBUSH on request
0192517045 MECALINE Taperbush 2517 - Ø 45 TAPERBUSH on request
0192517048 MECALINE Taperbush 2517 - Ø 48 TAPERBUSH on request
0192517050 MECALINE Taperbush 2517 - Ø 50 TAPERBUSH on request
0192517050,80 MECALINE Taperbush 2517 - Ø 50,80 (2") Brit. Std TAPERBUSH on request
0192517050,80AS MECALINE Taperbush 2517 - Ø 50,80 (2") Keyway 1/2x1/4 Am. Std. TAPERBUSH on request
0192517055 MECALINE Taperbush 2517 - Ø 55 TAPERBUSH on request
0192517060 MECALINE Taperbush 2517 - Ø 60 TAPERBUSH on request
0192517065 MECALINE Taperbush 2517 - Ø 65 * TAPERBUSH on request
