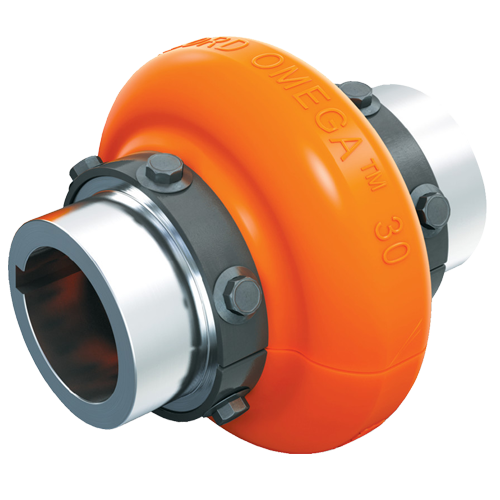

Tyre coupling OMEGA

Tyre coupling OMEGA "TYRE COUPLING OMEGA E 20 TL (1610)
Rated torque = 260 Nm
Max. speed = 6600 rpm
Bore D1 min. = 13 mm
Bore D1 max. = 40 mm
Bore D2 min. = 13 mm
Bore D2 max. = 40 mm
Outside diameter = 184 mm
Total length = 114 mm
The here above data are only for information. Please consult the catalog for detailed informations."

Reference : 306AOE020TL
Brand : REXNORD
Weight : /

Price : on request

in stock
or

Technical information

Category : Tyre coupling OMEGA
Brand : REXNORD
Type : OMEGA E HTL
Norm : 20
Cnom : 260 Nm
Nmax : 6600 tr/min
Bush : 1610
Bore1 : 42 mm
Bore2 : 42 mm
Material / hub : Cast iron
Material / element : PU
Shore : /
Max Temp. : +93°C °C
Backlashfree : /
Atex : Option
Treatment : /
